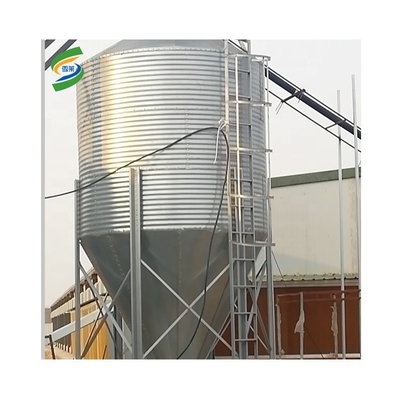

Small Grain Silos Large Capacity Steel Feed Silos for Chicken
Feed silo is mainly composed of silo roof, silo body and cone bottom.
The feed bin body includes the wall plate, supporting column, ladders on the silo body, protect handrail around ladders, silo door and door platform (based on silo diameter and height).
If the silo diameter is less than 3.6m (1.8m and 2.7m diameter), the silo roof can be open by the pulling bar from the ground. If the silo diameter is more than 3.6m, the silo roof is assembled with radiated beam, manhole, ladder, ladder safety or roof handrail.
Silo cone bottom is made of galvanized steel sheets, with 60° angle, so feed can flow easily by gravity; If the silo diameter is or less than 3.6m, the steel hopper sheet and legs will be made of galvanized steel sheet. If the silo diameter is or more than 3.6m, the steel hopper sheet and legs will be made of H beam steel with painted or galvanized.
Shelley Engineering is competitive in manufacturing large feed bins. Our feed silos are widely applied for farms, feed plants, poultry plants, animal plants, brewery plant and plastic production plant etc. They are also popular used in storing PP/PA pellets or wood pellets etc.
